Room
Having defined a list of assets via the Assets Tag, we are now ready to place them within the webspace. The <room></room> section of any webspace contains a list of assets that will appear within the webspace when viewed through JanusVR.
EXAMPLE:
The following example defines an AssetImage named "tree" and then places a copy in the environment at position 0 0 0. The entrance portal is located at 0 0 5 via the pos attribute attached to the Room tag.
<Assets>
<AssetImage id="tree" src="testimage.jpg" ></AssetImage>
</Assets>
<Room pos="0 0 5">
<Image id="tree" pos="0 0 0" ></Image>
</Room>
</FireBoxRoom>
Attributes:
Skybox:

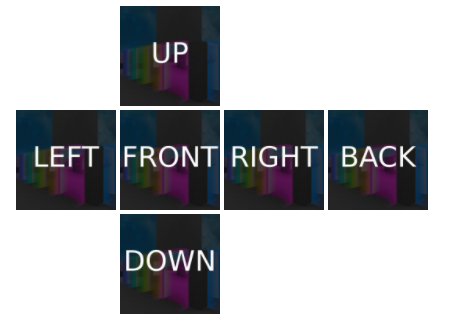

By default, a "sky" for the Room will be randomly selected amongst a small set which are packaged with JanusVR. Optionally, one can define a custom skybox for the Room.
skybox_left_id - The AssetImage to use as the left skybox.
skybox_right_id - The AssetImage to use as the right skybox.
skybox_front_id - The AssetImage to use as the front skybox.
skybox_back_id - The AssetImage to use as the back skybox.
skybox_up_id - The AssetImage to use as the upper skybox.
skybox_down_id - The AssetImage to use as the bottom skybox.
Room Templates:

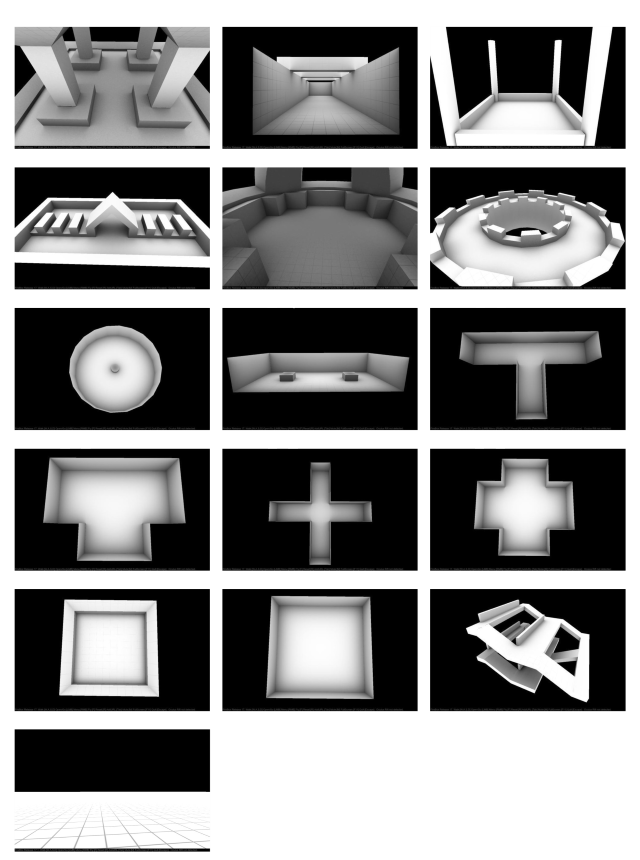

To help users quickly begin building, JanusVR offers "template rooms", which are geometry that can be used to define a structure and boundary for a Room.
use_local_asset - By entering any of the strings from the above image as a value, the associated default room geometry will be used.
col - (default "#ffffff") Allows the user to change the colour of the template geometry. The formatting is as follows:
Acceptable Colour Values:
#rgb/#rrggbb/#rrrgggbbb/#rrrrggggbbbb where any valid hex color is acceptedr g b Where each value is from 0 to 1.
r g b a Where each value is from 0 to 1.
rgb(r,g,b) where r g and b are from 0 - 255
rgba(r,g,b,a) where r g and b are from 0 - 255, a is from 0 to 1.
hsl(h,s,l) where h is from 0 to 360, s & l are from 0 to 100.
hsla(h,s,l,a) where h is from 0 to 360, s & l are from 0 to 100, a is from 0 to 1.
Also, any legal web color name is accepted as input.
visible - (default "true") Whether or not the default room geometry is visible.
Entrance Portal:
When you enter a webspace, you usually do so through an "entrance portal." Below are the attributes used to define the position and orientation of this entrance portal. When users teleport into the room via their pocketspace, they will do so in the same position and orientation that is defined by these attributes.
Example:
The below example places an entrance portal at 1 meter on the z axis facing 1 meter on the x axis.
<Room col="0 0 1" pos="5 0 5" fwd="1 0 0">...
</Room>
pos - (default "0 0 0") A vector containing x, y and z values. These values define where the user will enter the webspace.
fwd - (default "0 0 0") The forward direction (direction the user is facing) when entering the webspace. It is a vector containing x,y and z values.
xdir - (default "1 0 0") May be used as an alternative to the fwd attribute. A vector containing x, y and z values which defines the x direction in a rotation matrix.
ydir - (default "0 1 0") May be used as an alternative to the fwd attribute. A vector containing x, y and z values which defines the y direction in a rotation matrix.
zdir - (default "0 0 1") May be used as an alternative to the fwd attribute. A vector containing x, y and z values which defines the z direction in a rotation matrix.
rotation - (default "0 0 0") Specifies an Eulerian rotation in degrees.
rotation_order - (default "xyz") A string which defines the order of each of the x, y and z axes associated with the "rotation" attribute. Possible settings may be any combination of the letters "xyz".
Near and Far Plane:
near_dist - (default 0.0025) How many meters from the user's camera the near plane is located. All geometry before this distance will be clipped.
far_dist - (default 500) How many meters from the user's camera the far plane is located. All geometry after this distance will be clipped.
Movement:
jump_velocity - (default 5.0) How many meters per second the user will start moving upwards when they press the jump button.
walk_speed - (default 1.8) How many meters per second the user can walk.
run_speed - (default 5.4) How many meters per second the user can run.
Environmental:
gravity - (default -9.8) The gravity (defined in meters per second squared) to be applied to all physics capable objects which are not being supported by collision geometry.
Multiplayer Privacy:
cursor_visible - (default "true") - Whether or not to display other users' current cursor position.
party_mode - (default "true") - Whether or not to allow users to broadcast the room on the JanusVR "party mode" server. With this attribute set to false, even users who are currently in party mode will not be able to transmit their location. However, users may still tell others, or may be using a client which does not honor these settings. If you want to truly secure your webspace, consider using a password defined in the .htaccess file of your website. Tip: Don't want the world to see the room you are working on yet? There is a way to disable 'Party Mode' broadcast from your room, and also stop it being added to the 'popular rooms' list In the <Room> tag add party_mode="false"
Fog:
Fog allows the developer to create ambient scenes in which distant areas are obscured by a fog-like effect.
Example:
<Room use_local_asset="room_home" fog="true" fog_mode="exp" fog_density="0.1" fog_col="0 0 0.2">...
</Room>
fog - (default "false") - Whether or not to use fog in the webspace.
fog_mode - (default "exp") - Defines the weight function to use, choices are: exp, exp2, linear.
fog_density - (default "1.0") - The coefficient which applies to the "exp" and "exp2" fog_mode.
fog_start - (default "0.0") - The coefficient which applies to the "linear" fog_mode (the distance at which "fog begins").
fog_end - (default "1.0") - The coefficient which applies to the "linear" fog_mode (the distance at which "fog ends/is maximal").
fog_col - (default "0 0 0") - Defines the colour of the fog.
Acceptable Colour Values:
#rgb/#rrggbb/#rrrgggbbb/#rrrrggggbbbb where any valid hex color is acceptedr g b Where each value is from 0 to 1.
r g b a Where each value is from 0 to 1.
rgb(r,g,b) where r g and b are from 0 - 255
rgba(r,g,b,a) where r g and b are from 0 - 255, a is from 0 to 1.
hsl(h,s,l) where h is from 0 to 360, s & l are from 0 to 100.
hsla(h,s,l,a) where h is from 0 to 360, s & l are from 0 to 100, a is from 0 to 1.
Also, any legal web color name is accepted as input.
Teleportation:
Users in JanusVR are able to teleport through space. These attributes allow web developers to set limits on the minimum and maximum teleport distances.
teleport_min_dist - (default "5.0") The minimum cursor distance in meters needed to allow teleporting.
teleport_max_dist - (default "100.0") The maximum cursor distance in meters needed to allow teleporting.
Global Shader:
Users may apply an AssetShader to the entirety of the room's contents, portals and users' avatars through the attributes below. This global shader may be overwritten on a per-Object basis by setting the shader_id attribute for each Object.
shader_id - (default "") The AssetShader id to use as the global shader.
Multiplayer Server:
Janus VR allows the use of custom multiplayer servers for any room. The Janus VR client will create a new connection to the specified multiplayer server if a connection does not exist, and in addition subscribe to the URL on that server (to listen to and broadcast user events which happen in the room). The custom multiplayer server is specified by adding server and port for the Room.
server - (default "presence.janusvr.com") Set to the domain name or IP of the custom multiplayer server for the room.
port - (default "5566") Set to the port of the custom multiplayer server for the room.
rate - (default "200") Set to the update rate (in milliseconds) for connected clients to send updates the multiplayer server.
Manipulation:
grab_dist - (default 0.5) The maximum distance which a user can 'pick up' and object using the 'grab' button.
Reset Volume:
The Room attribute "reset_volume" defines a volume where if the user enters it, they are brought back to the entrance of the room. This is most commonly used to reset a user who has "fallen" from the geometry of the room and needs to be reset. It is defined by two 3D endpoints of a cuboid/axis-aligned bounding box. The default value effectively acts as an infinite volume below y=-100, so for Rooms where the user is expected to go below this y value, the reset volume should be redefined accordingly.
reset_volume - (default "-FLT_MAX -FLT_MAX -FLT_MAX FLT_MAX -100.0f FLT_MAX", where FLT_MAX is the largest representable floating point value) Set the endpoints of two opposite corners of the reset volume (an axis-aligned bounding box with format "x0 y0 z0 x1 y1 z1").
Example:
An example which users corner points (-1000,-500,-1000) and (1000,0,1000):
<Room reset_volume="-1000 -500 -1000 1000 0 1000">...
</Room>
Global Environmental Probe:
JanusVR automatically generates radiance and irradiance maps for global lighting based on the skybox imagery. However, if the user wishes to define their own there are simple markup tags to do so. Radience and Irradience maps must be defined as AssetImages whose source files are .dds format.
cubemap_radiance_id - (default "") Defines the radiance map to be used.
cubemap_irradiance_id - (default "") Defines the irradiance map to be used.
Example:
Below is an example of a custom radiance and irradiance map being defined.
<Assets><AssetImage id="Annotated_skybox_radiance" src="cubemap_radiance256.dds" tex_clamp="false" tex_linear="true" ></AssetImage>
<AssetImage id="Annotated_skybox_Irradiance" src="cubemap_irradiance64.dds" tex_clamp="false" tex_linear="true" ></AssetImage>
</Assets>
<Room>
<Room cubemap_radiance_id="Annotated_skybox_radiance" cubemap_irradiance_id="Annotated_skybox_Irradiance"/ >
</Room>
Text
The Text tag allows the addition of 3D text to the room.
EXAMPLE:

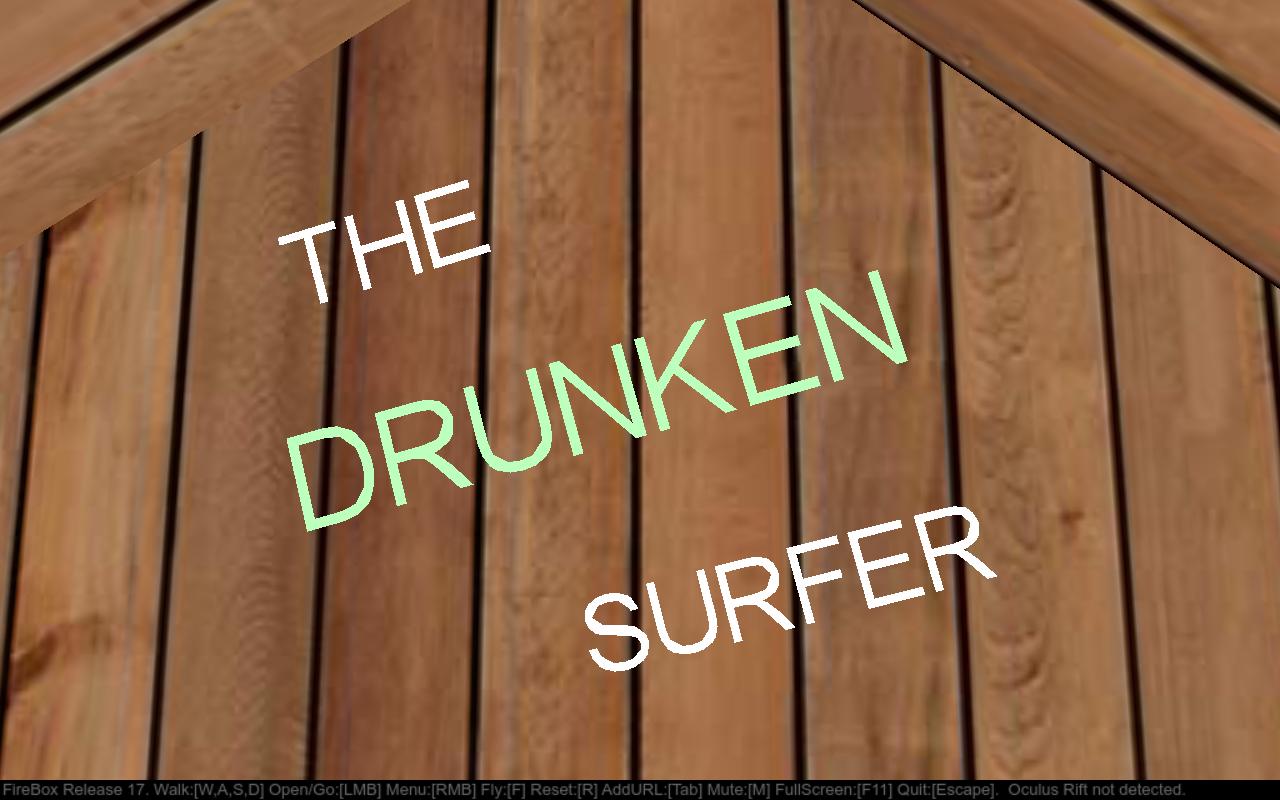

The following example shows a user placing text in the world.
<Assets>
</Assets>
<Room>
<Text pos="5 5 5" fwd="0 0 1" col="0.5 0.8 0.5" scale="2 2 2" locked="false">example text</Text>
</Room>
</FireBoxRoom>
Attributes:
pos (default "0 0 0") - specify the position (anchor point is centered horizontally, and at the bottom vertically)
fwd (default "0 0 1") - specify the orientation (or use xdir, ydir, zdir, defaults "1 0 0", "0 1 0", "0 0 1")
rotation - (default "0 0 0") Specifies an Eulerian rotation in degrees.
rotation_order - (default "xyz") A string which defines the order of each of the x, y and z axes associated with the "rotation" attribute. Possible settings may be any combination of the letters "xyz".
col (default "#ffffff") - Allows the user to change the colour of the associated element. The formatting is as follows:
Acceptable Colour Values:
#rgb/#rrggbb/#rrrgggbbb/#rrrrggggbbbb where any valid hex color is acceptedr g b Where each value is from 0 to 1.
r g b a Where each value is from 0 to 1.
rgb(r,g,b) where r g and b are from 0 - 255
rgba(r,g,b,a) where r g and b are from 0 - 255, a is from 0 to 1.
hsl(h,s,l) where h is from 0 to 360, s & l are from 0 to 100.
hsla(h,s,l,a) where h is from 0 to 360, s & l are from 0 to 100, a is from 0 to 1.
Also, any legal web color name is accepted as input.
scale (default "1 1 1") - scale the object along each of its x (horizontal), y (vertical) and z (forward) axes
locked (default "false") - if "true", prevents modification of attributes
lighting (default "true") - if "true", uses the default shading which includes diffuse and specular components
draw_layer (default 0) - Allows the user to manually sort the depth order of an object. For instance, an object of depth 0 will draw above an object of depth 1. Priority may be negative. Each priority group is also sorted based on distance.
Object
An Object refers to an instance of 3D geometry placed in the room. Objects can be used to define both the geometry of the room, as well as the boundary for the room, by using the collision_id attribute, detailed below.
EXAMPLE:

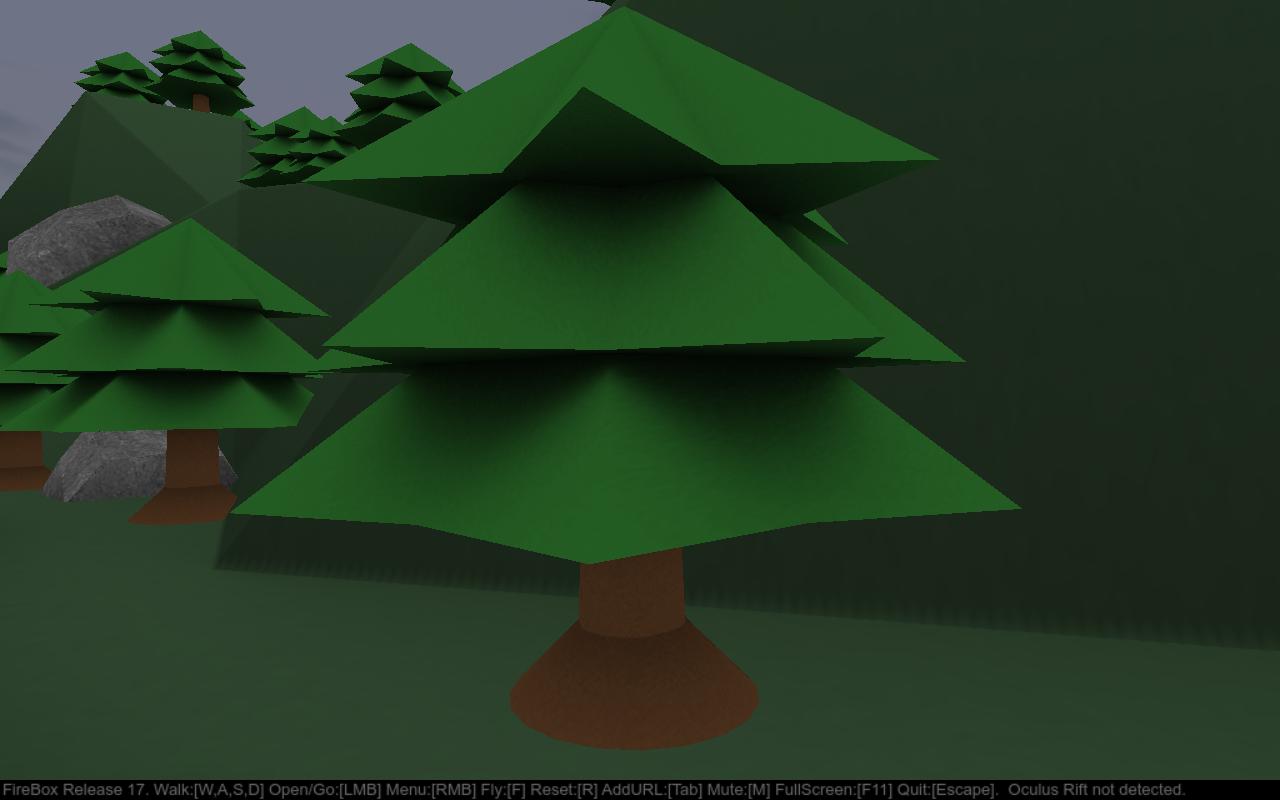

Here is an example Object, which is an instance of an AssetObject with id "room_adventure", which is also used as a collision model. It is locked, at position "0 0 0", faces direction "0 0 1", and will be coloured dark green.
<Object id="room_adventure" collision_id="room_adventure" locked="true" pos="0 0 0" xdir="1 0 0" ydir="0 1 0" zdir="0 0 1" scale="1 1 1" col="0.2 0.3 0.2" ></Object>
</Room>
Attributes:
id - set to the id of an AssetObject. This attribute also accepts the following primitive values: "capsule", "cone", "cube", "cylinder", "pipe", "plane", "pyramid", "sphere", "torus".
pos (default "0 0 0") - specify the position (anchor point is centered horizontally, and at the bottom vertically)
fwd (default "0 0 1") - specify the orientation (or use xdir, ydir, zdir, defaults "1 0 0", "0 1 0", "0 0 1")
vel (default "0") - Specifies the velocity of the object.
rotation - (default "0 0 0") Specifies an Eulerian rotation in degrees.
rotation_order - (default "xyz") A string which defines the order of each of the x, y and z axes associated with the "rotation" attribute. Possible settings may be any combination of the letters "xyz".
col (default "#ffffff") - Allows the user to change the colour of the associated element. The formatting is as follows:
Acceptable Colour Values:
#rgb/#rrggbb/#rrrgggbbb/#rrrrggggbbbb where any valid hex color is acceptedr g b Where each value is from 0 to 1.
r g b a Where each value is from 0 to 1.
rgb(r,g,b) where r g and b are from 0 - 255
rgba(r,g,b,a) where r g and b are from 0 - 255, a is from 0 to 1.
hsl(h,s,l) where h is from 0 to 360, s & l are from 0 to 100.
hsla(h,s,l,a) where h is from 0 to 360, s & l are from 0 to 100, a is from 0 to 1.
Also, any legal web color name is accepted as input.
scale (default "1 1 1") - scale the object along each of its x (horizontal), y (vertical) and z (forward) axes
locked (default "false") - if "true", prevents modification of attributes
cull_face (default "back") - options are "back", "front", "none" which specify what polygons are culled when the Object is rendered
rotate_axis (default "0 1 0") - defines an axis of rotation
rotate_deg_per_sec (default "0") - specifies the number of degrees to rotate per second about the axis defined by rotate_axis.
video_id (default "") - set to the id of an AssetVideo to shade the Object using frames of the video as a texture (see the section on AssetVideos for more information on defining an AssetVideo). Also note that the Object if clicked will serve as a control to start/stop the AssetVideo.
image_id (default "") - set to the id of an AssetImage to shade the Object using the image as a texture (see the section on AssetImages for more information). Note that the AssetImage will work even if SBS/UO formatted, or has animation.
shader_id (default "") - set to the id of an AssetShader to shade the Object with a GLSL fragment shader (see the section on AssetShaders for more information on defining an AssetShader)
websurface_id (default "") - set to the id of an AssetWebSurface to texture the Object with a 2D web view (see the section on AssetWebSurfaces for more information on defining an AssetWebSurface)
thumb_id (default "") - set to the id of an AssetImage, to show an image/thumbnail when an attached websurface is not selected (the AssetImage can animate)
lighting (default "true") - if "true", uses the default shading which includes diffuse and specular components
anim_id (default "") - set to the id of an AssetObject containing an animation
anim_speed (default "1.0") - changes the rate of playback of the animation defined by anim_id
loop (default "false") - if set to true, an animation will repeat from the start once completed
visible (default "true") - if set to false, the geometry for the Object is not visible/rendered
collision_ccdmotionthreshold (default 1.0) - Defines a minimum threshold for object velocity (defined in metres/sec) where continuous collision detection is used. (Objects with a velocity below this threshold use discrete instead)
collision_ccdsweptsphereradius (default 0.0) - When continuous collision detection is used, this values defines the radius of a swept sphere volume used to efficiently calculate collision with other objects in the scene.
collision_id (default "") - when set to the id of an AssetObject, collision testing is performed with that AssetObject. This makes it possible to define the boundary for the room using one's own custom geometry. (Note that the id and collision_id attributes can be set differently - the collision_id may refer to an AssetObject which is a low-polygon count version of a more detailed model, such as a bounding cube or sphere. Note also that collision tests are not performed if the player is not within the bounding volume of the AssetObject.)
collision_trigger (default "false") - When set to true, registers the object into the physics system so that it can be tested for collisions, but allows other objects to pass through it as if it were not a solid object.
collision_radius (default "0") - when set to a value greater than zero, an invisible cylinder at the specified radius prevents the player from passing through this Object (note that presently, this ignores the vertical or Y-position of the player, the cylinder extends in both directions along the Y-axis infinitely)
collision_pos (default "0 0 0") - Defines the collision mesh's x y and z offset from the parent object
collision_scale (default "1 1 1") - Scales the collision mesh along each of its x (horizontal), y (vertical) and z (forward) axes
collision_static (boolean, default "true") - Whether this Object is motionless/immovable (e.g. set to "true" for a wall or obstacle like the floor, set to "false" for a projectile).
teleport_id (default "") - if set to an AssetObject's id, will constrain teleportation in the HTC Vive to the defined mesh.
draw_layer (default 0) - Allows the user to manually sort the depth order of an object. For instance, an object of depth 0 will draw above an object of depth 1. Priority may be negative. Each priority group is also sorted based on distance.
onclick (default "") - Allows you to execute Javascript once the object is clicked upon by the user.
cubemap_radiance_id (default "") - Set to the id of an AssetImage to use it as the cubemap radiance for this object. Must be a .dds file. Look into the Room Tag: Global Environmental Probe section of the documentation for more info on this.
cubemap_irradiance_id (default "") - Set to the id of an AssetImage to use it as the cubemap irradiance for this object. Must be a .dds file. Look into the Room Tag: Global Environmental Probe section of the documentation for more info on this.
Paragraph
The Paragraph tag allows the addition a generated image which contains text, use this instead of "Text" when you want to display a large amount of text within the room (either this, or create your own image with text in it).
EXAMPLE:

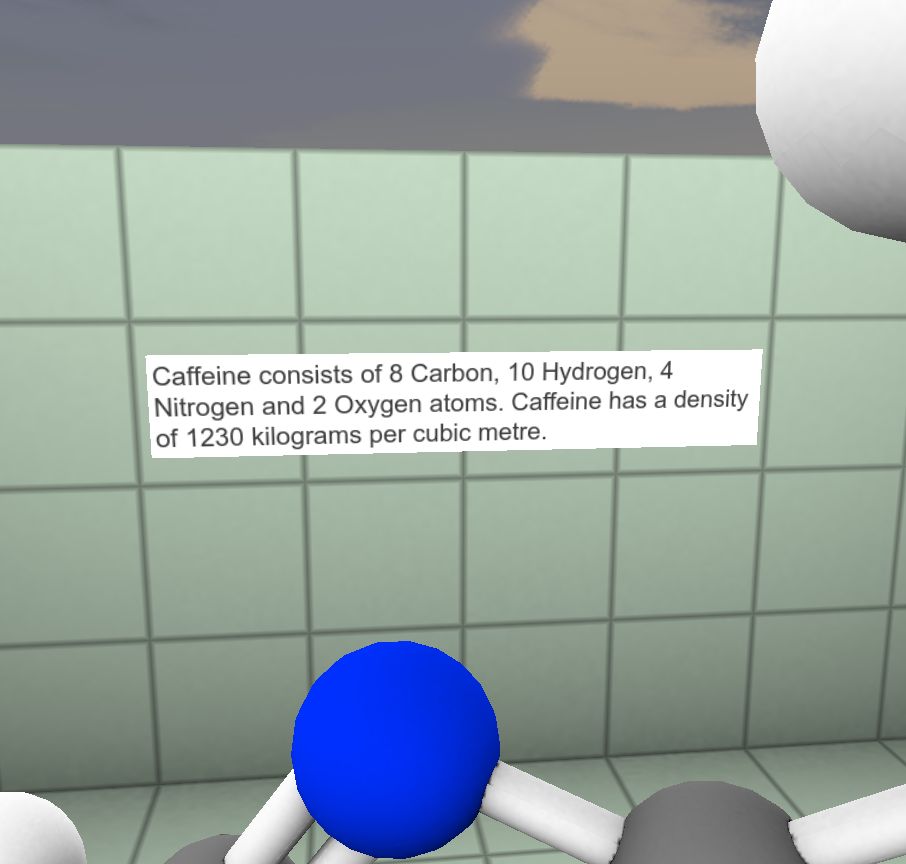

Like with the text tag, the paragraph's text content is placed between the opening and closing Paragraph tags. Here is an example which adds a Paragraph to the room at position "5 5 5" and facing direction "0 0 1".
<Paragraph pos="5 5 5" fwd="0 0 1" col="0.5 0.8 0.5" scale="2 2 2" locked="false">example paragraph's text</Paragraph>
</Room>
Attributes:
pos (default "0 0 0") - specify the position (anchor point is centered horizontally, and at the bottom vertically)
fwd (default "0 0 1") - specify the orientation (or use xdir, ydir, zdir, defaults "1 0 0", "0 1 0", "0 0 1")
rotation - (default "0 0 0") Specifies an Eulerian rotation in degrees.
rotation_order - (default "xyz") A string which defines the order of each of the x, y and z axes associated with the "rotation" attribute. Possible settings may be any combination of the letters "xyz".
col (default "#ffffff") - Allows the user to change the colour of the associated element. The formatting is as follows:
Acceptable Colour Values:
#rgb/#rrggbb/#rrrgggbbb/#rrrrggggbbbb where any valid hex color is acceptedr g b Where each value is from 0 to 1.
r g b a Where each value is from 0 to 1.
rgb(r,g,b) where r g and b are from 0 - 255
rgba(r,g,b,a) where r g and b are from 0 - 255, a is from 0 to 1.
hsl(h,s,l) where h is from 0 to 360, s & l are from 0 to 100.
hsla(h,s,l,a) where h is from 0 to 360, s & l are from 0 to 100, a is from 0 to 1.
Also, any legal web color name is accepted as input.
scale (default "1 1 1") - scale the object along each of its x (horizontal), y (vertical) and z (forward) axes
locked (default "false") - if "true", prevents modification of attributes
lighting (default "true") - if "true", uses the default shading which includes diffuse and specular components
draw_layer (default 0) - Allows the user to manually sort the depth order of an object. For instance, an object of depth 0 will draw above an object of depth 1. Priority may be negative. Each priority group is also sorted based on distance.
font_size (default "16") - specify the font size for the text
text_col (default "#000000") - Specifies the color of the paragraph's text. Uses the same formatting as any col attribute.
back_col (default "#ffffff") - Specifies the color of the paragraph's background. Uses the same formatting as any col attribute.
back_alpha (default "1") - specify the opacity (non-transparency) of the background

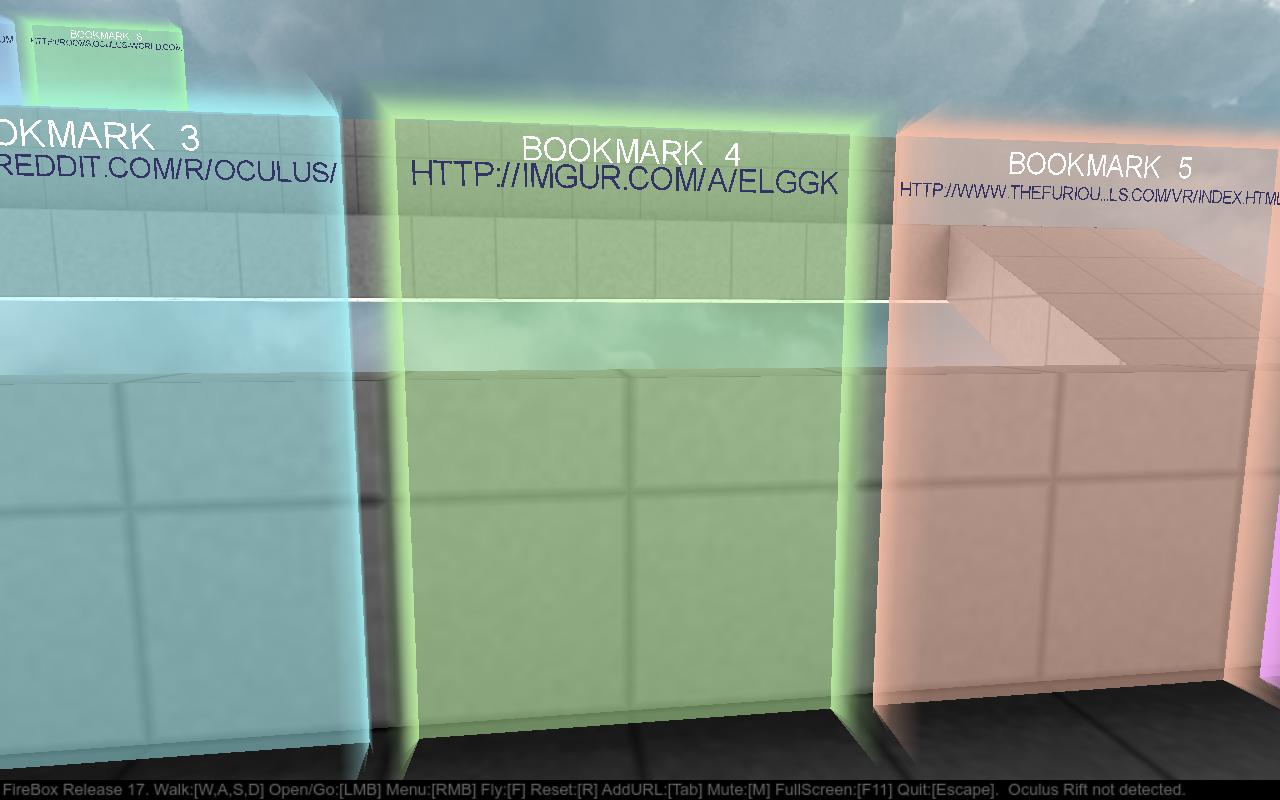

Link
A Link creates a portal which can be used to connect to another FireBoxRoom, or any other webpage specified with a URL.
EXAMPLE:
Here is an example Link.
<Link pos="66.7 -5 -9" url="horses.html" col="0.6 1 0.6" scale="1.8 3.2 1" title="A Strange Room Full of Horse Pictures" ></Link>
</Room>
Attributes:
url (default "") - specify the URL to link to
title (default "") - a title for the page the URL links to (shown until it is loaded)
pos (default "0 0 0") - specify the position (anchor point is centered horizontally, and at the bottom vertically)
fwd (default "0 0 1") - specify the orientation (or use xdir, ydir, zdir, defaults "1 0 0", "0 1 0", "0 0 1")
rotation - (default "0 0 0") Specifies an Eulerian rotation in degrees.
rotation_order - (default "xyz") A string which defines the order of each of the x, y and z axes associated with the "rotation" attribute. Possible settings may be any combination of the letters "xyz".
col (default "#ffffff") - Allows the user to change the colour of the associated element. The formatting is as follows:
Acceptable Colour Values:
#rgb/#rrggbb/#rrrgggbbb/#rrrrggggbbbb where any valid hex color is acceptedr g b Where each value is from 0 to 1.
r g b a Where each value is from 0 to 1.
rgb(r,g,b) where r g and b are from 0 - 255
rgba(r,g,b,a) where r g and b are from 0 - 255, a is from 0 to 1.
hsl(h,s,l) where h is from 0 to 360, s & l are from 0 to 100.
hsla(h,s,l,a) where h is from 0 to 360, s & l are from 0 to 100, a is from 0 to 1.
Also, any legal web color name is accepted as input.
scale (default "1 1 1") - scale the object along each of its x (horizontal), y (vertical) and z (forward) axes
draw_glow (default "true") - whether to show the portal glow along the boundary
draw_text (default "true") - whether to show the text at the top of the portal for URL and page title
auto_load (default "false") - if true, the room that the portal links to will be loaded immediately; if false, the portal must first be clicked before it will load the room
thumb_id (default "") - if set to the id of an AssetImage, a "thumbnail image" will be displayed for the portal, useful for indicating what lies through it before it's loaded. The AssetImage content is expected to be square (width and height equal), and the portal will crop the image according to its dimensions to preserve the aspect ratio.
draw_layer (default 0) - Allows the user to manually sort the depth order of an object. For instance, an object of depth 0 will draw above an object of depth 1. Priority may be negative. Each priority group is also sorted based on distance.
mirror (default "false") - Boolean that determines whether or not the portal will be a mirror. To mirror the room's contents, the url of the link must be that of the containing room.

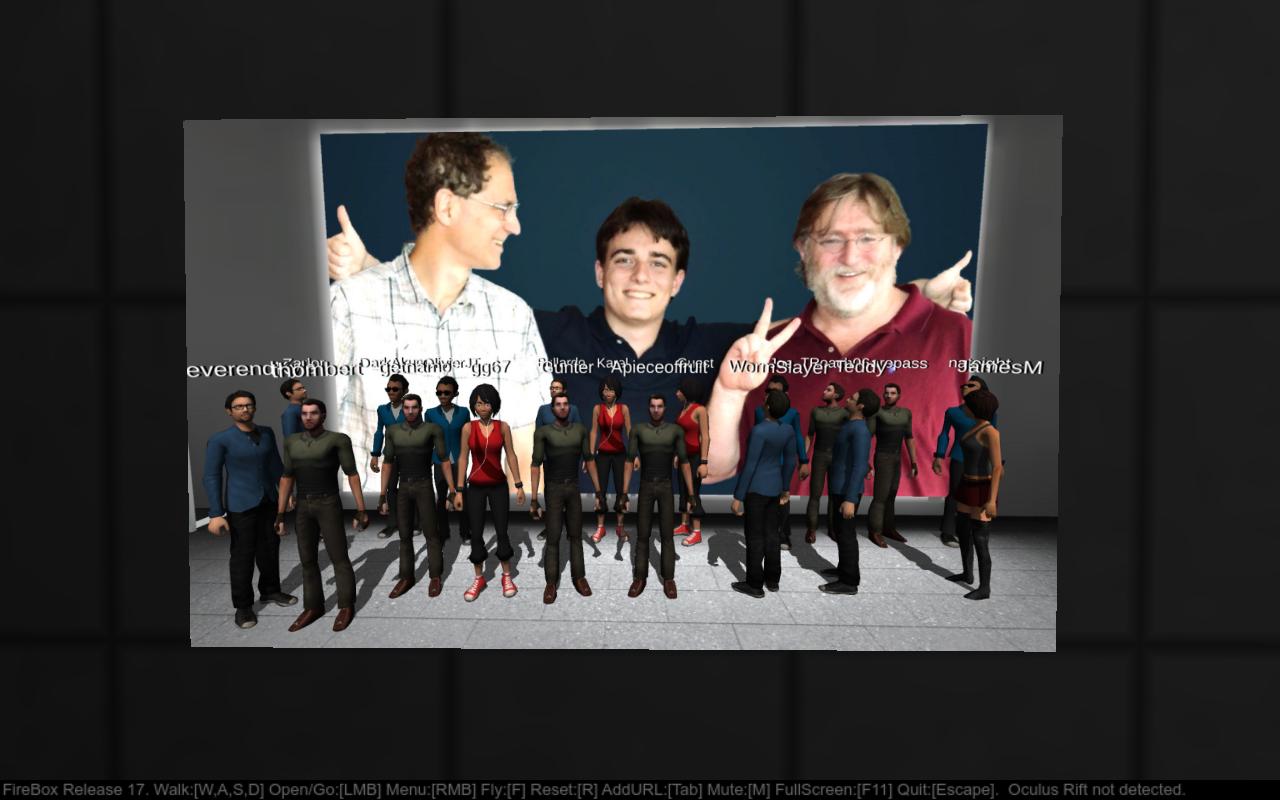

An Image is represented in 3D as a rectangular shape with thickness 1/10 of the maximum width or height. The appearance is much like art done on canvas wrapped around a wooden frame. The dimensions are such that the aspect ratio of the image is preserved. Transparent images are supported and can be used to interesting effect.
EXAMPLE:
Here is an example Image.
<Image id="caffeine_img" pos="-10 2 -5" fwd="1 0 0" scale="1.75 1.75 1" ></Image>
</Room>
Attributes:
id (default "") - set to the id of an AssetImage
pos (default "0 0 0") - specify the position (anchor point is centered horizontally, and at the bottom vertically)
fwd (default "0 0 1") - specify the orientation (or use xdir, ydir, zdir, defaults "1 0 0", "0 1 0", "0 0 1")
rotation - (default "0 0 0") Specifies an Eulerian rotation in degrees.
rotation_order - (default "xyz") A string which defines the order of each of the x, y and z axes associated with the "rotation" attribute. Possible settings may be any combination of the letters "xyz".
col (default "#ffffff") - Allows the user to change the colour of the associated element. The formatting is as follows:
Acceptable Colour Values:
#rgb/#rrggbb/#rrrgggbbb/#rrrrggggbbbb where any valid hex color is acceptedr g b Where each value is from 0 to 1.
r g b a Where each value is from 0 to 1.
rgb(r,g,b) where r g and b are from 0 - 255
rgba(r,g,b,a) where r g and b are from 0 - 255, a is from 0 to 1.
hsl(h,s,l) where h is from 0 to 360, s & l are from 0 to 100.
hsla(h,s,l,a) where h is from 0 to 360, s & l are from 0 to 100, a is from 0 to 1.
Also, any legal web color name is accepted as input.
scale (default "1 1 1") - scale the object along each of its x (horizontal), y (vertical) and z (forward) axes
locked (default "false") - if "true", prevents modification of attributes
lighting (default "true") - if "true", uses the default shading which includes diffuse and specular components
draw_layer (default 0) - Allows the user to manually sort the depth order of an object. For instance, an object of depth 0 will draw above an object of depth 1. Priority may be negative. Each priority group is also sorted based on distance.
Sound
A Sound plays a specific AssetSound when the player enters a rectangle defined on the XZ plane, which is used to "trigger" the sound. One can also specify whether the sound should loop once triggered, or only play back once. To get ambient sound or music to play for the room upon entry, use a very large rectangle to trigger the sound (or at least contains the room's entrance portal), and set the sound to loop.
EXAMPLE:
Here is an example Sound, which plays "music_sound" on loop when the player's X position is between -100 and 100, and Z position is between -50 and 50.
<Sound id="music_sound" rect="-100 -50 100 50" loop="true" ></Sound>
</Room>
Attributes:
id - set to the id of an AssetSound
rect (default "0 0 0 0") - presently, defines two opposite 2D corners of a rectangle which triggers the sound to play, the format is "X1 Z1 X2 Z2" (note that since the rectangle is 2D, the player's Y-position does not matter for triggering the sound, note also pressing "C" will toggle showing coordinates for your position and direction which is useful to determine the rectangle's bounds)
loop (default "false") - normally the sound plays only one time, but when this attribute is set to true, the sound will play indefinitely until the player leaves the room
play_once (default "false") - when set to true, the given Sound will only play one time for the duration of the visit. If set to "false" (the default), the sound will play once each time the player enters the room.
pos (default "0 0 0") - when set to any other value than the default, the Sound is 3D spatialized (requires version 45+)
dist (default "1.0") - distance attenuation setting for 3D spatialized sound (requires version 45+)
gain (default "1.0") - gain setting for 3D spatialized sound (requires version 45+)
pitch (default "1.0") - pitch setting for 3D spatialized sound (requires version 45+)

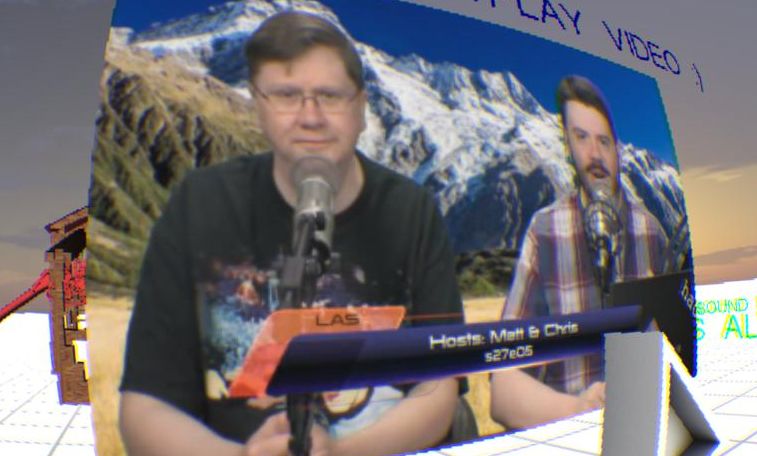

Video
A Video plays a specific AssetVideo. The video can be controlled by left clicking on it (stop and play). You can specify whether the video should loop once playing, and whether the video should start playing automatically when the room is entered. Multiple Video's can be associated with one AssetVideo without any extra performance penalty (useful if you want the same video to appear at multiple locations in the room). The video will appear in the room as a rectangle, and the ratio of the height and width dimensions will match that of the video itself, preserving aspect ratio. All videos in a room are stopped automatically when the user leaves the room.
EXAMPLE:
Here is an example Video, which plays "vid_id" within a rectangle positioned at "0 2 -5" and facing "0 0 1".
<Video id="vid_id" pos="0 2 -5" fwd="0 0 1" ></Video>
</Room>
Attributes:
id - set to the id of an AssetVideo
thumb_id (default "") - set to the id of an AssetImage, to show an image/thumbnail for this video while it is not playing (the AssetImage can even animate)
pos (default "0 0 0") - specify the position (anchor point is centered horizontally and vertically)
fwd (default "0 0 1") - specify the orientation (or use xdir, ydir, zdir, defaults "1 0 0", "0 1 0", "0 0 1")
rotation - (default "0 0 0") Specifies an Eulerian rotation in degrees.
rotation_order - (default "xyz") A string which defines the order of each of the x, y and z axes associated with the "rotation" attribute. Possible settings may be any combination of the letters "xyz".
col (default "#ffffff") - Allows the user to change the colour of the associated element. The formatting is as follows:
Acceptable Colour Values:
#rgb/#rrggbb/#rrrgggbbb/#rrrrggggbbbb where any valid hex color is acceptedr g b Where each value is from 0 to 1.
r g b a Where each value is from 0 to 1.
rgb(r,g,b) where r g and b are from 0 - 255
rgba(r,g,b,a) where r g and b are from 0 - 255, a is from 0 to 1.
hsl(h,s,l) where h is from 0 to 360, s & l are from 0 to 100.
hsla(h,s,l,a) where h is from 0 to 360, s & l are from 0 to 100, a is from 0 to 1.
Also, any legal web color name is accepted as input.
scale (default "1 1 1") - scale the video along each of its x (horizontal), y (vertical) and z (forward) axes
locked (default "false") - if "true", prevents modification of attributes
lighting (default "true") - if "true", uses the default shading which includes diffuse and specular components
draw_layer (default 0) - Allows the user to manually sort the depth order of an object. For instance, an object of depth 0 will draw above an object of depth 1. Priority may be negative. Each priority group is also sorted based on distance.
gain (default "1.0") - gain setting for audio emitted by video.

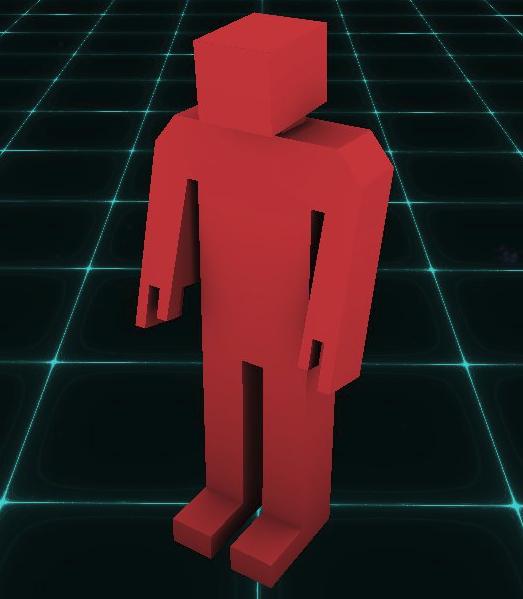

Ghost
A Ghost refers to an instance of a recorded avatar within the room. Properties for the ghost invariant to the recording, such as scale, colour, and custom geometry used to represent the ghost can all be specified. When no geometry is specified for the "head" and "body" parts of the ghost, a default boxy appearance is used. Since a Ghost is a recording, there are options to set the recording to loop and to auto_play on room entry.
EXAMPLE:
Here is a simple example.
<Assets>
<AssetGhost id="ghost" src="ghost.txt" ></AssetGhost>
</Assets>
<Room>
<Ghost id="ghost" auto_play="true" ></Ghost>
</Room>
</FireBoxRoom>
EXAMPLE:
Here is a more complicated and complete example, where AssetObjects are used to define the geometry for the head and body of the ghost.
<Assets>
<AssetObject id="rikku_head" src="rikku_ghost/rikku_head.obj" mtl="rikku_ghost/rikku_head.mtl" ></AssetObject>
<AssetObject id="rikku_body" src="rikku_ghost/rikku_body.obj" mtl="rikku_ghost/rikku_body.mtl" ></AssetObject>
<AssetShader id="rikku_shader" src="rikku_ghost/rikku_shader.txt" ></AssetShader>
<AssetGhost id="ghost1" src="ghost1.txt" ></AssetGhost>
</Assets>
<Room>
<Ghost id="ghost1" shader_id="rikku_shader" head_id="rikku_head" head_pos="0 1 0" body_id="rikku_body" scale="1.5 1.5 1.5" cull_face="none" loop="true" auto_play="true" ></Ghost>
</Room>
</FireBoxRoom>
Attributes:
id - set to the id of an AssetGhost
cull_face (default "back") - options are "back", "front", "none" which specify what polygons are culled when the Object is rendered (may be useful when using custom geometry for ghost's body and head)
col (default "#ffffff") - Allows the user to change the colour of the associated element. The formatting is as follows:
Acceptable Colour Values:
#rgb/#rrggbb/#rrrgggbbb/#rrrrggggbbbb where any valid hex color is acceptedr g b Where each value is from 0 to 1.
r g b a Where each value is from 0 to 1.
rgb(r,g,b) where r g and b are from 0 - 255
rgba(r,g,b,a) where r g and b are from 0 - 255, a is from 0 to 1.
hsl(h,s,l) where h is from 0 to 360, s & l are from 0 to 100.
hsla(h,s,l,a) where h is from 0 to 360, s & l are from 0 to 100, a is from 0 to 1.
Also, any legal web color name is accepted as input.
scale (default "1 1 1") - scale the ghost along each of its x (horizontal), y (vertical) and z (forward) axes
locked (default "false") - if "true", prevents modification of attributes
head_id (default "") - the id of an AssetObject which will be used to define the geometry for the head of the ghost
head_pos (default "0 1 0") - specify the relative position of the head in the model (the point of articulation for the head relative to the body, where the centre point between the feet should be at "0 0 0")
eye_pos (default "0 1.6 0") - specify relative to the avatar model, where the central eye position should be
eye_ipd (default "0") - specify the virtual IPD (the spacing between the eyes of the virtual character, units are in metres)
body_id (default "") - the id of an AssetObject which will be used to define the geometry for the body of the ghost
shader_id (default "") - set to the id of an AssetShader to shade the Ghost with a GLSL fragment shader (see the section on AssetShaders for more information on defining an AssetShader)
loop (default "false") - normally the ghost recording plays only one time, but when this attribute is set to true, the ghost recording will play indefinitely until the player leaves the room
auto_play (default "false") - when set to true, the ghost recording will start playing immediately when the user enters the Room. When false, the user clicks the ghost to play the recording.
lighting (default "true") - if "true", uses the default shading which includes diffuse and specular components
userid_pos (default "0 0 0") - an offset to relocate the userid of the Ghost (useful if the geometry of the avatar blocks it)
draw_layer (default 0) - Allows the user to manually sort the depth order of an object. For instance, an object of depth 0 will draw above an object of depth 1. Priority may be negative. Each priority group is also sorted based on distance.

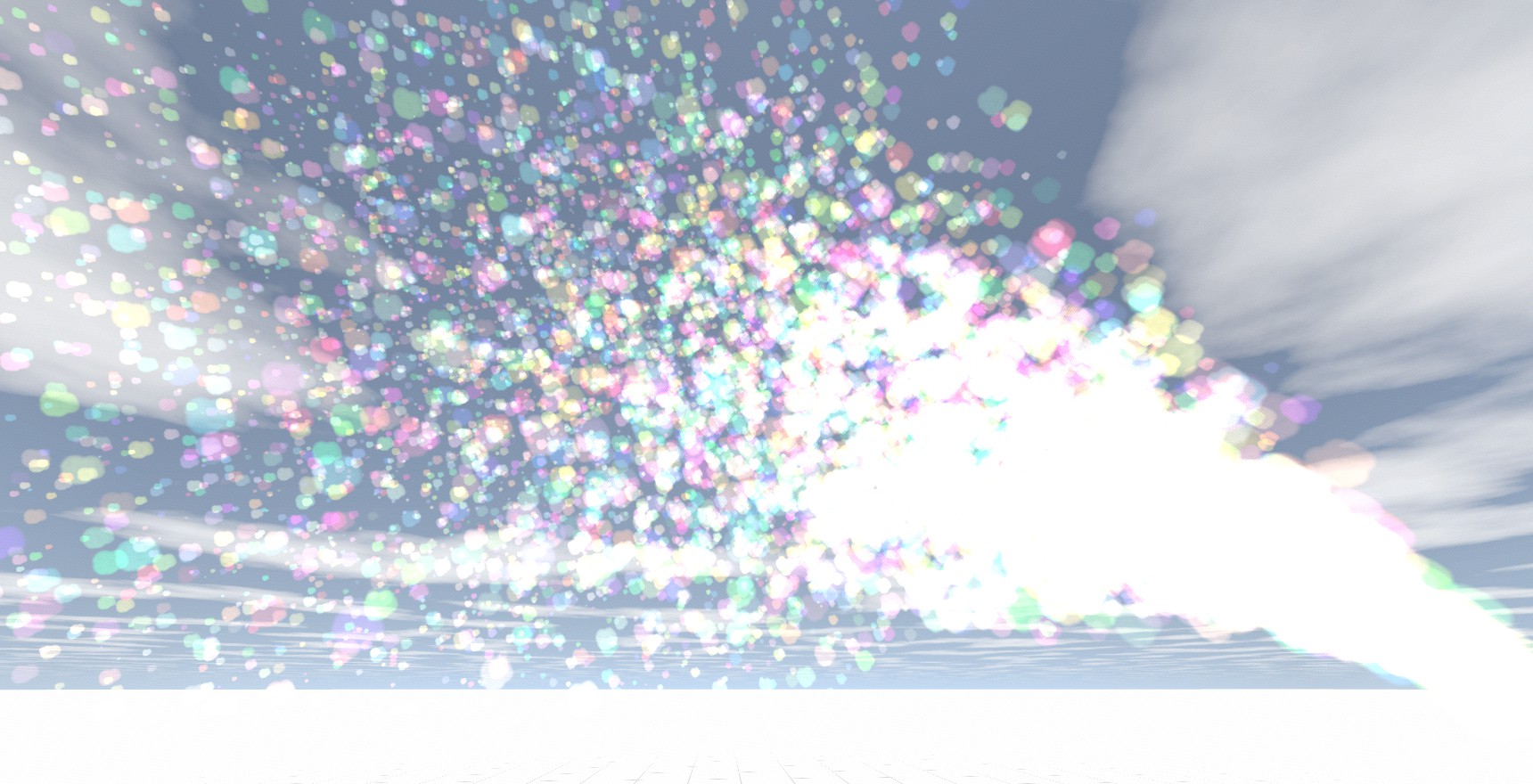

Particle
Particle creates a particle system, where each particle is most often a quad rotated to face the user, but each particle can be any kind of geometry defined by specifying an AssetObject. To set the texture for the quad, set the image_id attribute. To specify geometry other than a quad to use for each particle, specify the id attribute which matches an AssetObject. For each particle, it's initial position, velocity, acceleration, colour and scale can be specified, as well as an additional random attribute which will be added, covered below:
EXAMPLE:
Here is an example which creates a "waterfall" effect.
<Assets>
<AssetImage id="water_particle" src="water.png" ></AssetImage>
</Assets>
<Room>
<Particle pos="-0.85 4 -0.25" scale="0.1 0.1 0.1" vel="-1 0 0" accel="0 -9.8 0" rate="100" count="200" lighting="false" image_id="water_particle" duration="1.5" loop="true" rand_pos="0 0.1 0.5" rand_vel="-0.5 0 0" rand_accel="0 0.5 0" col="0.5 0.5 0.5" rand_col="0 0 0.3" ></Particle>
</Room>
</FireBoxRoom>
Attributes:
image_id (default "") - set to the id of an AssetImage to use as the texture for each particle
id (default "") - set to the id of an AssetObject to use custom geometry instead of a textured quad (Note: specifying an AssetObject to use for each particle is optional, a textured quad is generally used)
rate (default "1") - how many particles to generate per second
count (default "0") - the total number of particles allowed by this system at any time
duration (default "1.0") - the lifetime in seconds of a particle
fade_in (default "1.0") - the number of seconds as particle is created that the alpha value should linearly fade from 0 to 1
fade_out (default "1.0") - the number of seconds prior to particle removal that the alpha value should linearly fade from 1 to 0
pos (default "0 0 0") - initial position for generated particles
vel (default "0 0 0") - initial velocity for generated particles
accel (default "0 0 0") - initial acceleration for generated particles
col (default "#ffffff") - Allows the user to change the colour of the associated element. The formatting is as follows:
Acceptable Colour Values:
#rgb/#rrggbb/#rrrgggbbb/#rrrrggggbbbb where any valid hex color is acceptedr g b Where each value is from 0 to 1.
r g b a Where each value is from 0 to 1.
rgb(r,g,b) where r g and b are from 0 - 255
rgba(r,g,b,a) where r g and b are from 0 - 255, a is from 0 to 1.
hsl(h,s,l) where h is from 0 to 360, s & l are from 0 to 100.
hsla(h,s,l,a) where h is from 0 to 360, s & l are from 0 to 100, a is from 0 to 1.
Also, any legal web color name is accepted as input.
scale (default "1 1 1") - initial scale for generated particles
rand_pos (default "0 0 0") - an initial random position that is added to the pos value, where the contribution is random (that is, for each component x,y,z, a random factor between 0 and 1 is generated and multipled before adding rand_pos to pos)
rand_vel (default "0 0 0") - an initial random position that is added to the vel value, where the contribution is random (that is, for each component x,y,z, a random factor between 0 and 1 is generated and multipled before adding rand_vel to vel)
rand_accel (default "0 0 0") - an initial random position that is added to the accel value, where the contribution is random (that is, for each component x,y,z, a random factor between 0 and 1 is generated and multipled before adding rand_accel to accel)
rand_col (default "0 0 0") - an initial random position that is added to the col value, where the contribution is random (that is, for each component x,y,z, a random factor between 0 and 1 is generated and multipled before adding rand_col to col)
rand_scale (default "0 0 0") - an initial random position that is added to the scale value, where the contribution is random (that is, for each component x,y,z, a random factor between 0 and 1 is generated and multipled before adding rand_scale to scale)
lighting (default "true") - if "true", uses the default shading which includes diffuse and specular components
loop (default "false") - if set to "false", only count particles will be generated and no more, but if set to "true", particles will continue to be generated forever
draw_layer (default 0) - Allows the user to manually sort the depth order of an object. For instance, an object of depth 0 will draw above an object of depth 1. Priority may be negative. Each priority group is also sorted based on distance.
emit_local (default "false") - if true, emitted particles emit and move relative to the transform of the Particle emitter. If false, particles emit in the global coordinate system and are not affected by any subsequent transform changes in the Particle emitter.
emitter_id - the id of an AssetObject whose mesh vertices are used at random to define initial emitted particle positions.
Light
Light creates a lighting element which casts on to any geometry with the lighting attribute set to true. This in turn can be used to create dynamic lighting effects like sirens, lamps, spotlights and the like.
EXAMPLE:
The following creates a spotlight.
<Assets>
</Assets>
<Room>
<Light js_id="14" pos="0 7.5 6.7" xdir="0 0 0" ydir="0 0 0" zdir="0 -1 0" col="#ffe5bf" light_intensity="100" light_cone_angle="0.8" light_cone_exponent="40" light_range="12" ></Light>
</Room>
</FireBoxRoom>
Attributes:
pos (default "0 0 0") - specify the position (anchor point is centered horizontally, and at the bottom vertically)
fwd (default "0 0 1") - specify the orientation (or use xdir, ydir, zdir, defaults "1 0 0", "0 1 0", "0 0 1")
rotation - (default "0 0 0") Specifies an Eulerian rotation in degrees.
rotation_order - (default "xyz") A string which defines the order of each of the x, y and z axes associated with the "rotation" attribute. Possible settings may be any combination of the letters "xyz".
col (default "#ffffff") - Allows the user to change the colour of the associated element. The formatting is as follows:
Acceptable Colour Values:
#rgb/#rrggbb/#rrrgggbbb/#rrrrggggbbbb where any valid hex color is acceptedr g b Where each value is from 0 to 1.
r g b a Where each value is from 0 to 1.
rgb(r,g,b) where r g and b are from 0 - 255
rgba(r,g,b,a) where r g and b are from 0 - 255, a is from 0 to 1.
hsl(h,s,l) where h is from 0 to 360, s & l are from 0 to 100.
hsla(h,s,l,a) where h is from 0 to 360, s & l are from 0 to 100, a is from 0 to 1.
Also, any legal web color name is accepted as input.
light_intensity (default "1.0") - Brightness at the source of the light, with distance-squared falloff.
light_cone_angle (default "0") - Defines the shape of the light. Setting to -1 disables the light. Setting to 0 specifies a point light (default). Between 0 and 1, specifies the cosine of the cone/spotlight angle (closer to 0 is wider, closer to 1 is more narrow). Lastly, setting to 1 specifies a direction light, which lights the entire environment (ignores the light_range setting).
light_cone_exponent (default "1.0") - Modifies intensity falloff from center to cone's boundary.
light_range (default "0.5") - The maximum distance of the influence of the light, in meters (use as small a value as possible to optimize GPU performance, as smaller values reduce the number of fragments that do lighting calculations).
